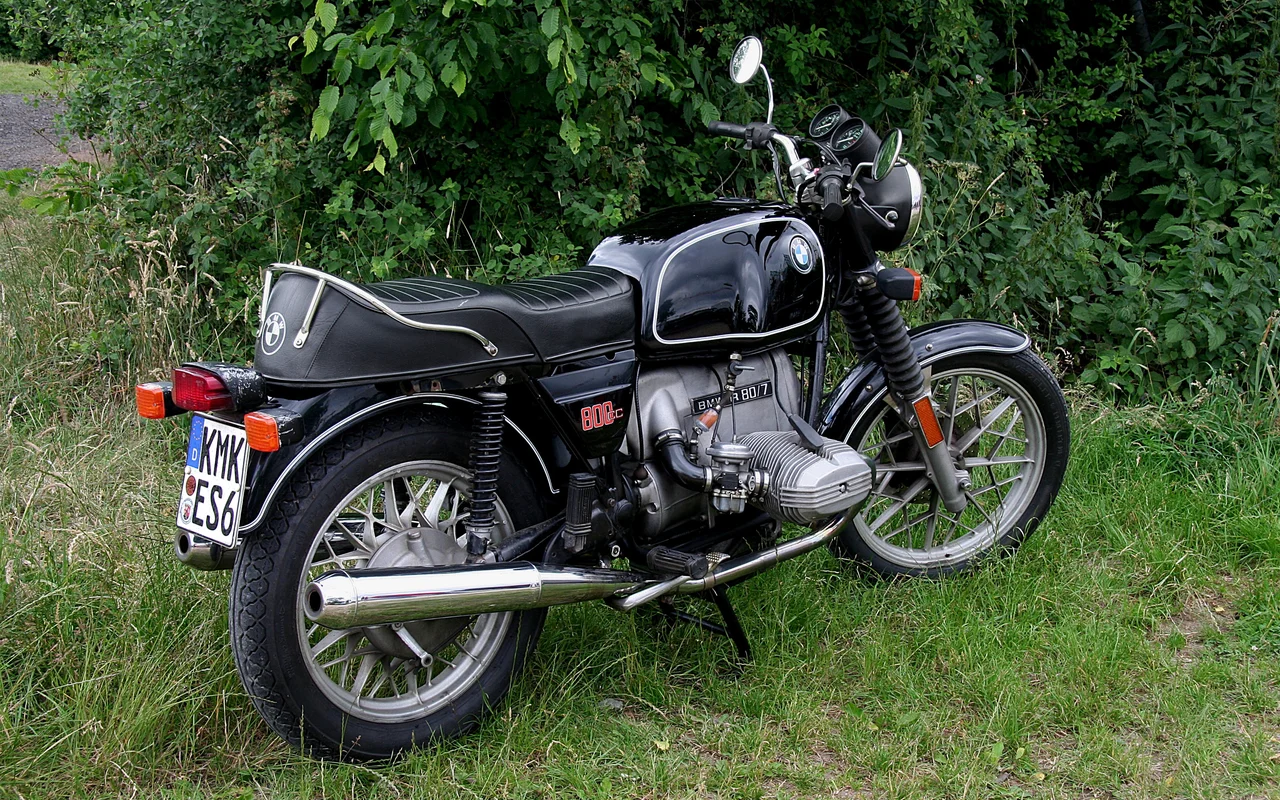

BMW R 80/7 Specs
1980 - 1984
• 1 variants
BMW has built the R 80/7, an all-round motorcycle, across 1 variant since 1980, most recently updated for 1984. It makes 50 hp at peak. Torque tops out at 58 Nm.
About the BMW R 80/7
Documented here are the full technical specifications for the BMW R 80/7, a All-Round motorcycle with a production run from 1977 to 1984. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.
BMW R 80/7 by Year
Spec Evolution
How key specs changed across production years.
No numeric spec data available for this model.
|
Specification
|
1979
|
1983
|
1984
|
|
Wheelbase
|
1465 mm / 57.67 in | 1447 mm / 56.9 in ↓ | 1465 mm / 57.67 in ↑ |
|
Ground Clearance
|
165 mm / 6.49 in | 140 mm / 5.51 in ↓ | 165 mm / 6.49 in ↑ |
|
Fuel Capacity
|
24 Litres / 6.3 US gal | 22 Litres / 5.8 gal ↓ | 24 Litres / 6.3 gal ↑ |
|
Suspension - Front
|
Telescopic hydraulic forks | Telescopic hydraulic forks. | Telescopic hydraulic forks. |
|
Height
|
1080 mm / 42.5 in | 1106 mm / 43.5 in ↑ | 1080 mm / 42.5 in ↓ |
|
Length
|
2210 mm / 87.0 in | 2175 mm / 88.6 in ↓ | 2210 mm / 87.0 in ↑ |
|
Compression Ratio
|
8.2:1 | 9.2:1 ↑ | 9.2:1 |
|
Wet Weight
|
215 kg / 473 lbs | 210 Kg / 462 lbs ↓ | 215 Kg / 473 lbs ↑ |
|
Gear Ratios
|
1st 4.4 / 2nd 2.86 / 3rd 2.07 / 4th 1.67 / 5th 1.50 | 1st 4.40 / 2nd 2.86 / 3rd 2.07 / 4th 1.67 / 5th 1.50 | 1st 3.38 / 2nd 2.43 / 3rd 1.93 / 4th 1.67 / 5th 1.50 |
|
Tyres - Front
|
3.25 - H19 | 90/90-17 ↑ | 3.25 - H19 ↓ |
|
Width
|
746 mm / 29.3 in | 800 mm / 31.2 in ↑ | 746 mm / 29.3 in ↓ |
|
Tyres - Rear
|
4.00 - H18 | 120/90-18 ↑ | 4.00 - H18 ↓ |
|
Wheel Ratio - Rear
|
1:3.20 or 1:3.36 | 1:3.20 or 1 3.36 | 1:3.20 or 1 3.36 |
|
Wheels - Front
|
1.85 - B19 | MTH 2.50 x 17E ↑ | 1.85 - B19 ↓ |
|
Wheels - Rear
|
2.50 - B18 | MTH 2.50 x 18E | 2.50 - B18 |
|
Wheel Travel - Front
|
200 mm / 7.3 in | 175 mm / 6.8 in ↓ | 200 mm / 7.3 in ↑ |
|
Max Power
|
36.4 kW / 50 hp @ 6500 rpm | 50 hp / 36.4 KW @ 6500 rpm ↑ | 55 hp / 40 KW @ 6500 rpm ↑ |
|
Wheel Travel - Rear
|
125 / 4.9 in | 125 mm / 4.9 in | 125 mm / 4.9 in |
|
Max Torque
|
58 Nm / 5.9 kgf-m / 43 lb-ft @ 4000 rpm | 58 Nm / 5.9 kgf-m / 42 ft lb @ 5500 rpm | 64 Nm / 6.5 kgf-m / 47 ft lb @ 5500 rpm ↑ |
|
Spark Plug
|
Bosch W 175 T 30 | Bosch W 7 D / Beru14-7DU / Champion N9YC ↓ | Bosch W 175 T 30 ↑ |
