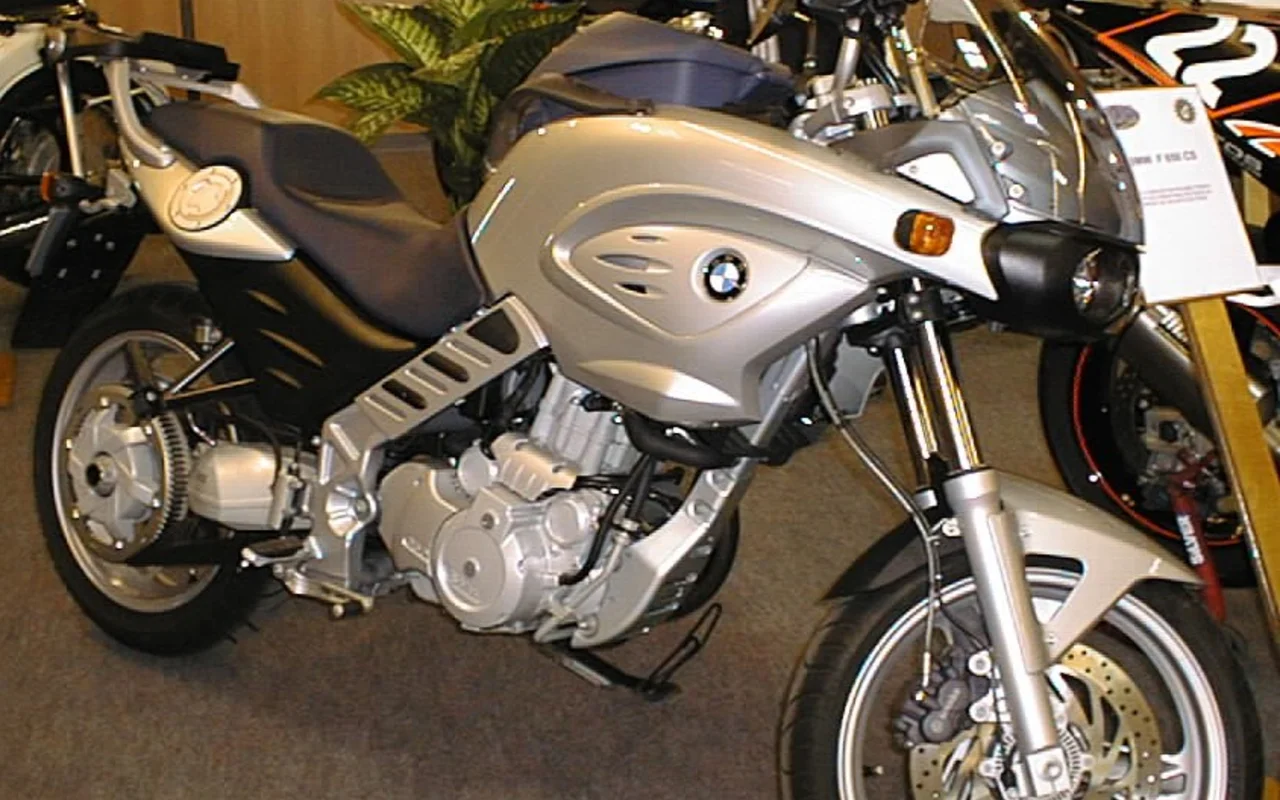

BMW F 650 CS Specs
2003
• 1 variants
The BMW F 650 CS is a naked bike produced from 2003 across 1 variant. Engine displacement is 652.00 cc.
About the BMW F 650 CS
The BMW F 650 CS is a All-Round motorcycle from BMW, produced from 2003 to 2005. This page provides a comprehensive technical reference for the BMW F 650 CS, covering all available specification data including engine configuration, displacement, power output, dimensions, weight, and chassis details. Use the year selector above to find specifications for a specific model year. All data is sourced from manufacturer specifications and is intended as a technical reference for riders, mechanics, and enthusiasts.
BMW F 650 CS by Year
Spec Evolution
How key specs changed across production years.
No numeric spec data available for this model.
|
Specification
|
2003
|
2004
|
2005
|
|
Seat Height
|
780 mm / 30.7 in. | 750 mm / 29.5 in. ↓ | 780 mm / 30.7 in. ↑ |
|
Dry Weight
|
193 kg / 425.5 lbs | 175 kg / 385.8 lbs ↓ | 169.6 kg / 373.9 lbs ↓ |
|
Frame Type
|
- | Bridge-type steel section frame with bolted-on rear section | Bridging frame, steel section, with integrated oil tank and bolted-on rear frame |
|
Brakes - Front
|
- | Single disc | Double disc |
|
Wheelbase
|
1,479 mm / 58.2 in. | 1,479 mm / 58.2 in. | 1,493 mm / 58.8 in. ↑ |
|
Fuel Capacity
|
17.30 litres / 4.57 gallons | 17.30 litres / 4.57 gallons | 15.00 litres / 3.96 gallons ↓ |
|
Suspension - Front
|
- | Telescopic fork, stanchion diameter 41 mm, fork stabiliser, 170 mm travel | Telescopic fork, stanchion diameter 41 mm |
|
Suspension - Rear
|
- | Box-section steel section dual swing arm, central spring strut action via lever system, spring pre-load hydraulically adjustable to continuously variable levels by means of handwheel, rebound damping adjustable, 165 mm travel | Die-cast aluminium single-sided swinging arm with rear wheel axle and eccentric adjustment, central spring strut action via lever system |
|
Fuel System
|
- | Injection | Injection. Electronic intake pipe injection / BMW engine management, dual ignition |
|
Final Drive
|
- | Chain | Belt |
|
Height
|
- | 910 mm / 35.8 in. | 1,158 mm / 45.6 in. ↓ |
|
Length
|
- | 2,175 mm / 85.6 in. | 2,142 mm / 84.3 in. ↓ |
|
Tyres - Front
|
- | 100/90-18 | 110/70-ZR17 ↑ |
|
Width
|
- | 1,265 mm / 49.8 in. | 915 mm / 36.0 in. ↑ |
|
Tyres - Rear
|
- | 130/80-17 | 170/60-ZR17 ↑ |
|
Rake
|
- | 29.2° | 27.9° ↓ |
|
Max Torque
|
59.70 | 60.00 ↑ | 62.00 ↑ |
|
Power-to-Weight Ratio
|
0.2591 HP/kg | 0.2857 HP/kg ↑ | 0.2925 HP/kg |
