Key Specifications
Engine
Four stroke, 90°°L°twin cylinder, SOHC, desmodromic 4 valve per cylinder
Power
118 kW / 160 hp @ 9750 rpm
Torque
123 Nm / 90.7 lb-ft. @ 8000 rpm
Top Speed
260 km/h / 161.6 mph
Weight
172 kg / 379.2 lbs
Fuel Capacity
16 Litres / 4.2 US gal.
Advertisement

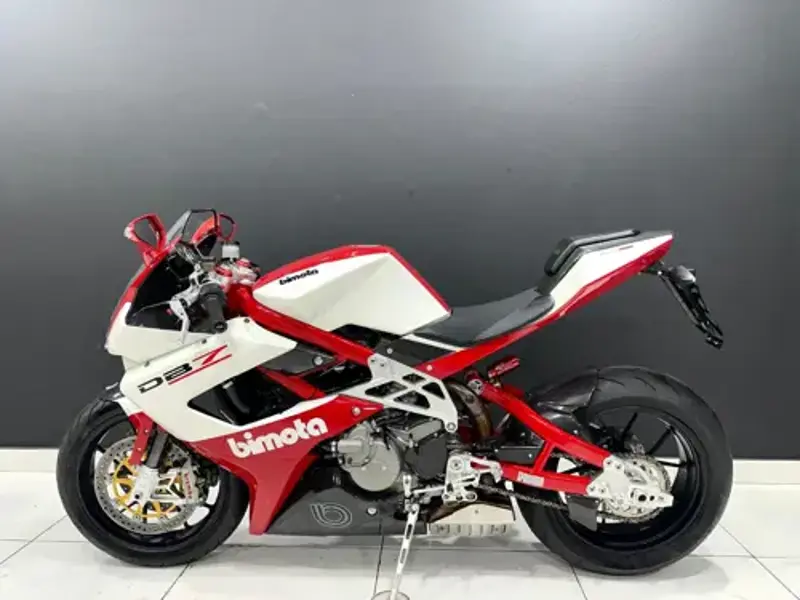

Full 2011 Bimota DB7 Specifications
Year
2010 - 11
Make Model
Bimota DB7
Seat Height
800 mm / 31.5 in.
Dry Weight
172 kg / 379.2 lbs
Fuel Capacity
16 Litres / 4.2 US gal.
Displacement
1099 cc / 67.1 in.
Engine Detail
Four stroke, 90°°L°twin cylinder, SOHC, desmodromic 4 valve per cylinder
Bore x Stroke
104 x 64.7mm
Compression Ratio
12.5:1
Cooling System
Liquid cooled
Fuel Induction
Electrically controlled gasoline injection and φ60mm throttle body
Ignition
Magneti Marelli
Starter
Electric
Clutch
Wet multiple plates, hydraulic system
Final Drive
Chain
Gear Ratios
1st 12.5:1 / 2nd 8.333:1 / 3rd 6.25:1 / 4th 5.263:1 / 5th 4.5455:1 / 6th 4:1
Transmission / Drive
6 Speed
Suspension - Front
43mm Marzocchi UD fork DLC fully adjustable, 120mm wheel travel.
Suspension - Rear
Extreme Tech Monoshock TTX fully adjustable low/high speed, 120mm wheel travel.
Brakes - Front
2x 320mm / 12.6 in. discs 4 piston caliper
Brakes - Rear
Single 230mm / 9.1 in.disc 2 piston caliper
Tyres - Front
120/70 ZR17
Tyres - Rear
190/55 ZR17
