Key Specifications
Engine
Four stroke, longitudinal 65° V four , DOHC, 4 valves per cylinder
Power
132 kW / 180 hp @ 12500 rpm
Torque
115 Nm / 11.7 kgf-m / 84.8 lb-ft @ 10000 rpm
Fuel Capacity
17 Liters / 4.4 US gal
Advertisement

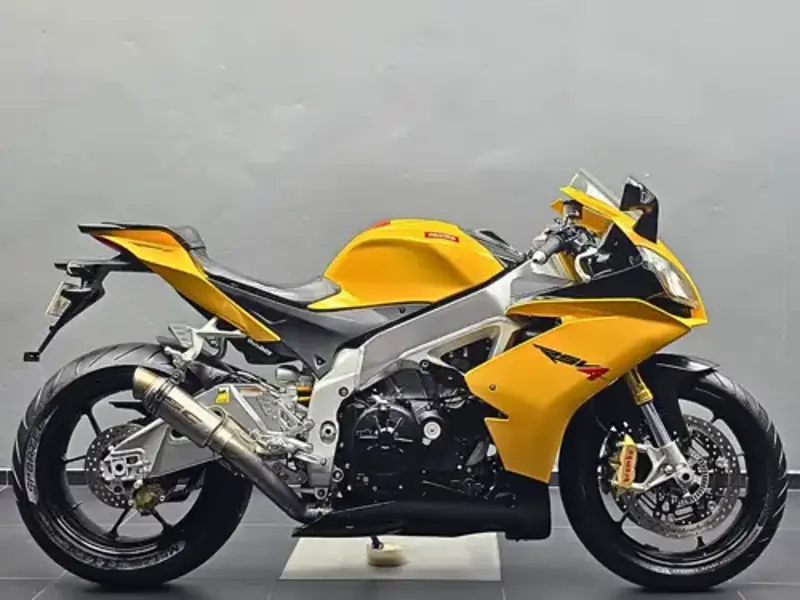

Full 2013 Aprilia RSV-4R APRC / ABS Specifications
Year
2013
Make Model
Aprilia RSV-4R APRC / ABS
Seat Height
845 mm / 33.2 in
Ground Clearance
130 mm / 5.1 in
Height
1120 mm / 44.0 in
Length
2040 mm / 80.3 in
Width
735 mm / 28.9 in (at the handlebar)
Dry Weight
182 kg / 401 lbs
Fuel Capacity
17 Liters / 4.4 US gal
Displacement
999.1 cc / 61.0 cu-in
Engine Detail
Four stroke, longitudinal 65° V four , DOHC, 4 valves per cylinder
Bore x Stroke
78 x 52.3 mm
Compression Ratio
13.0:1
Cooling System
Liquid cooled
Exhaust
4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with engine control unit-controlled butterfly valve and integrated trivalent catalytic converter (Euro 3) Flywheel mounted 420W alternator with rare earth magnets
Fuel Induction
Airbox with front dynamic air intakes. Variable length intake ducts controlled via ECU. 4 Weber-Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-by-Wire engine management. Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R (Road) Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and "stick-coil"-type coils
Fuel Reserve
4 Liters / 1.1 US gal
Ignition
Electronic digital ignition integrated in the fuel management system.
Lubrication
Wet sump. Two pumps (lubrication and cooling). Oil cooler.
Starter
Electric
Clutch
Cassette type
Final Drive
Chain
Gear Ratios
1st: 39:15 (2.6) / 2nd: 33:16 (2,063) / 3rd: 34:20 (1.7) / 4th: 32:22 (1,455) / 5th: 34:26 (1,308) / 6th: 33:27 (1,222)
Primary Drive
Straight cut gears and integrated flexible coupling, drive ratio: 73:44 (1,659) Secondary drive Chain: Drive ratio: 42:16 (2.625) Traction management APRC System (Aprilia Performance Ride Control), which includes Traction Control (ATC), Wheelie Control (AWC), Launch Control (ALC), all of which can be configured and deactivated independently.
Transmission / Drive
6 Speed
Frame Type
Twin-spar adjustable aluminium frame, with castings and pressings. Adjustments: headstock position and rake engine height swingarm pin height, Öhlins adjustable steering dumper
Suspension - Front
Upside-down Sachs fork with ø43 mm stanchions. Aluminium radial caliper mounts. Completely adjustable spring preload and hydraulic compression and rebound damping.
Suspension - Rear
Double braced aluminium swingarm; mixed low thickness and sheet casting technology. Sachs piggy back monoshock with completely adjustable: spring preload, wheelbase, hydraulic compression and rebound damping. APS progressive linkage.
Steering Angle
24.5°
Trail
105 mm / 4.1 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
130 mm / 5.1 in
Brakes - Front
2 x Ø320 mm diameter floating stainless steel disc with lightweight stainless steel rotor and aluminium flange with 6 pins. Brembo monobloc radial calipers with 4 x Ø34 mm opposite. Sintered pads. Radial pump and metal braided brake hose
Brakes - Rear
Single Ø220 mm diameter disc, Brembo floating caliper with two Ø32 mm isolated pistons. Pump with integrated tank and metal braided hose
Tyres - Front
120/70 ZR17
Tyres - Rear
200/55 ZR 17 (alternative: 190/50 ZR 17; 190/55 ZR17)
